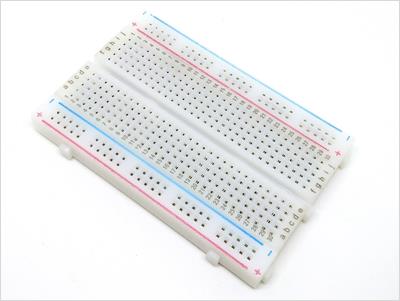

Breadboard

Features of the Mini-Breadboard

• 400 tie-point plug-in Solderless Bread-Board
• Four independent common bus lines
• Hole Pitch/Style: 0.1" (2.54 mm), Square Wire Holes
• Insertion Wire Size: 21 to 29 AWG wire, or 0.025” Square post headers 0.016 to 0.028 inches diameter (0.4 to 0.7mm diameter)
• Contact Life: 50,000 insertions
• Rating: 36 Volts, 2 Amps
• ABS plastic material and phosphor bronze nickel plated spring clips
•
